Lecture 4: Memory

Memory

• This is CS50's introduction to computer science.
• Today, we will focus on memory management, pointers, and dynamic memory allocation.
• Let's begin by talking about memory itself.

Welcome!

• Today, we take off so many of the training wheels that you used to get your start in this class.
• In previous weeks, we talked about images being made of smaller building blocks called pixels.
• This week, we will go into further detail about the zeros and ones that make up these images. In particular, we will be going deeper into the fundamental building blocks that make up files, including images.
• Further, we will discuss how to access the underlying data stored in computer memory.
• As we begin today, know that the concepts covered in this lecture may take some time to fully click.

Pixel Art

• Pixels are squares, individual dots, of color that are arranged on an up-down, left-right grid.

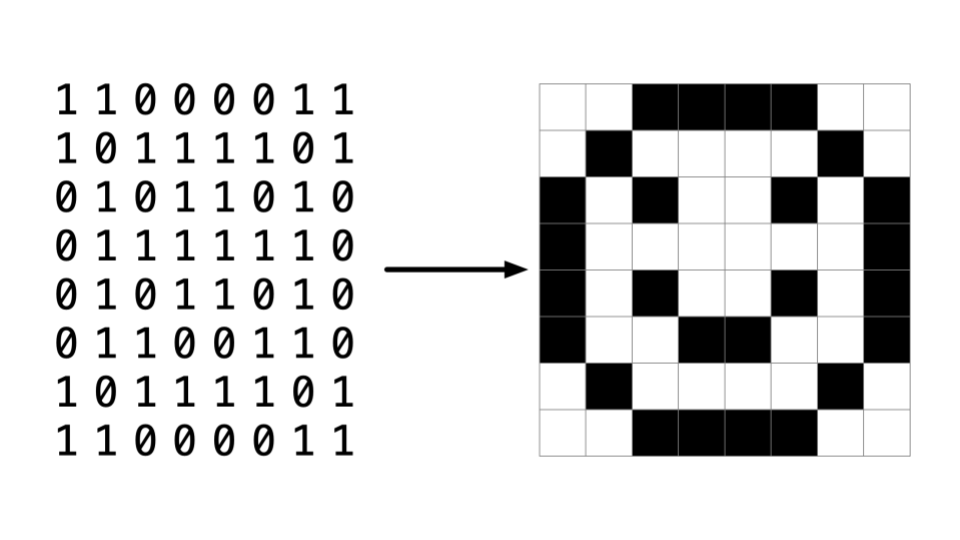

• You can imagine an image as a map of bits, where zeros represent black and ones represent white.



Hexadecimal

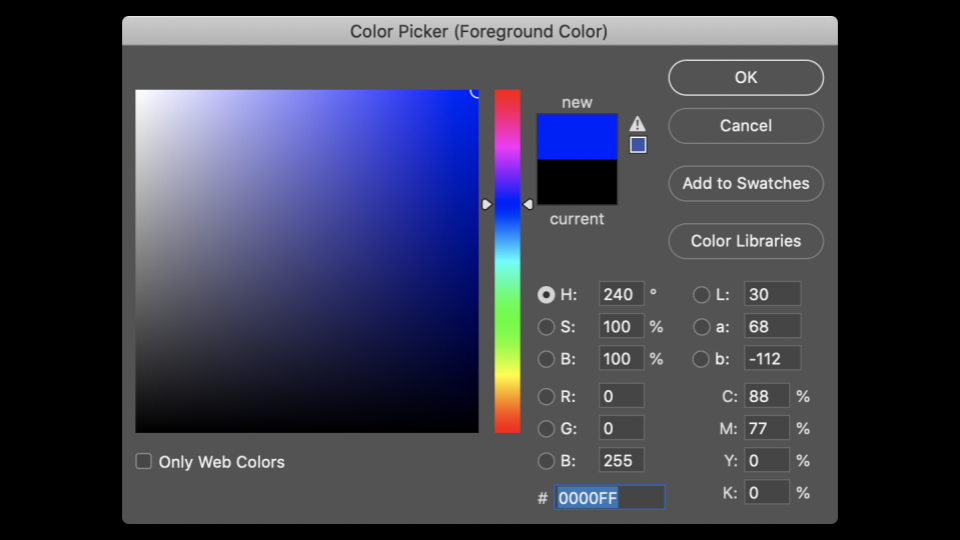

• RGB, or red, green, blue, are numbers that represent the amount of each of these colors. In Adobe Photoshop, you can see these settings as follows:



  Notice how the amount of red, blue, and green changes the color selected.

• You can see from the image above that color is not just represented by three values. At the bottom of the window, there is a special value made up of numbers and characters. 255 is represented as FF. Why might this be?

• Hexadecimal is a system of counting that has 16 counting values. They are as follows:

0 1 2 3 4 5 6 7 8 9 A B C D E F

Notice that F represents 15.

• Hexadecimal is also known as base-16.
• When counting in hexadecimal, each column is a power of 16.
• The number 0 is represented as 00.
• The number 1 is represented as 01.
• The number 9 is represented by 09.
• The number 10 is represented as 0A.
• The number 15 is represented as 0F.
• The number 16 is represented as 10.
• The number 255 is represented as FF, because 16 x 15 (or F) is 240. Add 15 more to make 255. This is the highest number you can count using a two-digit hexadecimal system.
• Hexadecimal is useful because it can be represented using fewer digits. Hexadecimal allows us to represent information more succinctly.

Memory

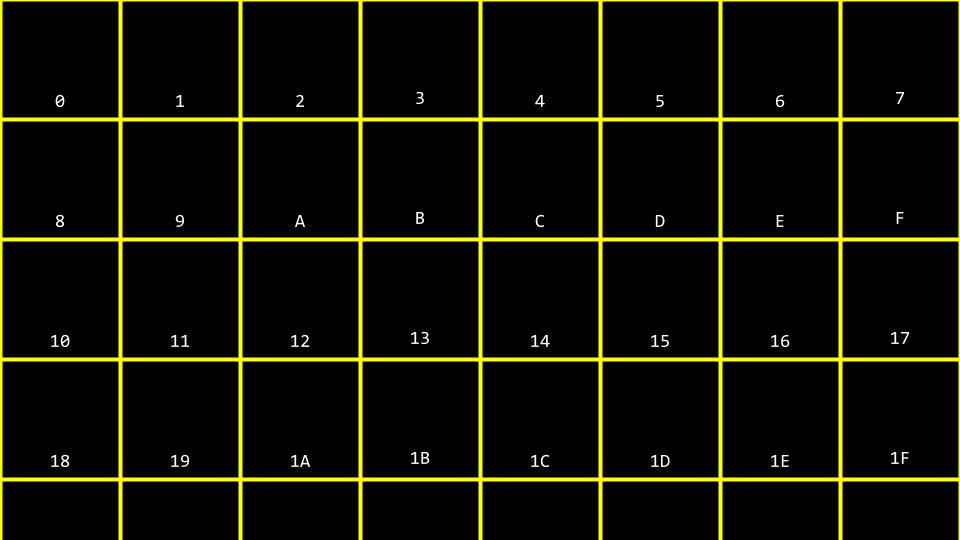

• In weeks past, you may recall our artist rendering of concurrent blocks of memory. Applying hexadecimal numbering to each of these blocks of memory, you can visualize these as follows:



• You can imagine how there may be confusion regarding whether the 10 block above may represent a location in memory or the value 10. Accordingly, by convention, all hexadecimal numbers are often represented with the 0x prefix as follows:



• In your terminal window, type code addresses.c and write your code as follows:

// Prints an integer

#include <stdio.h>

int main(void)
{
    int n = 50;
    printf("%i\n", n);
}

Notice how n is stored in memory with the value 50.

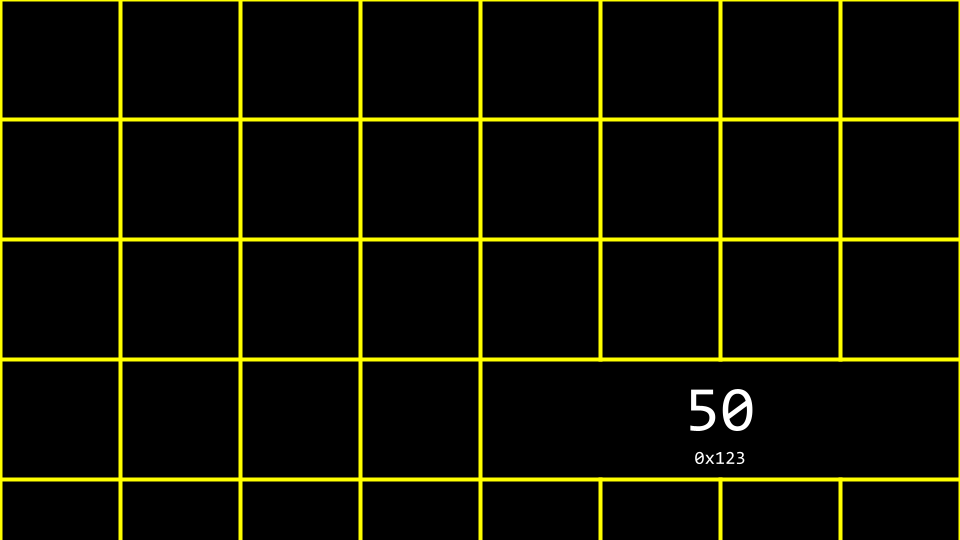

• You can visualize how this program stores this value as follows:



Pointers

• The C language has two powerful operators that relate to memory:

& Provides the address of something stored in memory.
  * Instructs the compiler to go to a location in memory.

• We can leverage this knowledge by modifying our code as follows:

// Prints an integer's address

#include <stdio.h>

int main(void)
{
    int n = 50;
    printf("%p\n", &n);
}

Notice the %p, which allows us to view the address of a location in memory. &n can be literally translated as “the address of n.” Executing this code will return an address of memory beginning with 0x. You can download this code here.

• A pointer is a variable that stores the address of something. Most succinctly, a pointer is an address in your computer’s memory.

• Consider the following code:

  Notice that p is a pointer that contains the address of an integer n.

• Modify your code as follows:

// Stores and prints an integer's address

#include <stdio.h>

int main(void)
{
    int n = 50;
    int *p = &n;
    printf("%p\n", p);
}

Notice that this code has the same effect as our previous code. We have simply leveraged our new knowledge of the & and * operators. You can download this code here.

• To illustrate the use of the * operator, consider the following:

// Stores and prints an integer's address

#include <stdio.h>

int main(void)
{
    int n = 50;
    int *p = &n;
    printf("%p\n", p);
}

Notice that the printf line prints the integer’s address. int *p creates a pointer whose job is to store the memory address of an integer. You can download this code here.

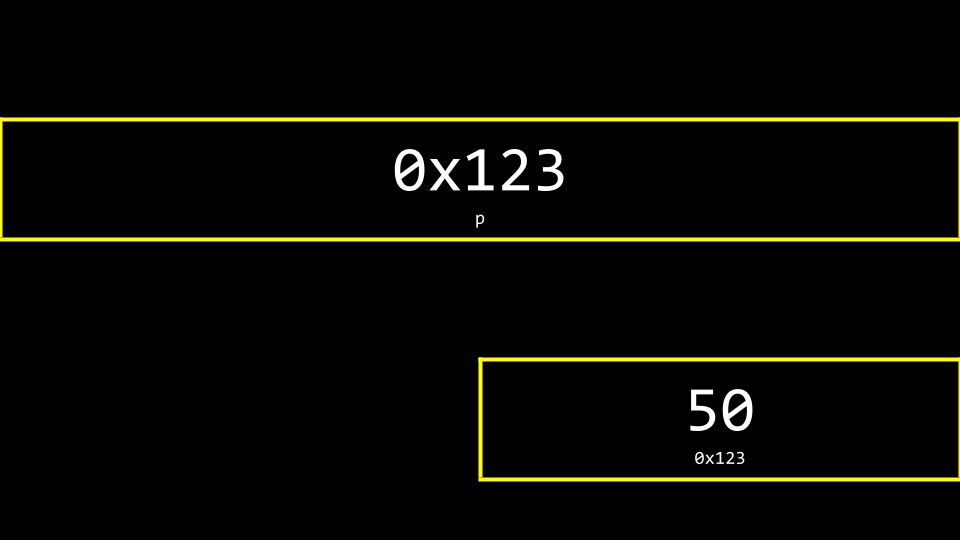

• You can visualize our code as follows:



  Notice that the pointer seems rather large. Indeed, a pointer is usually stored as an 8-byte value. p is storing the address of the 50.

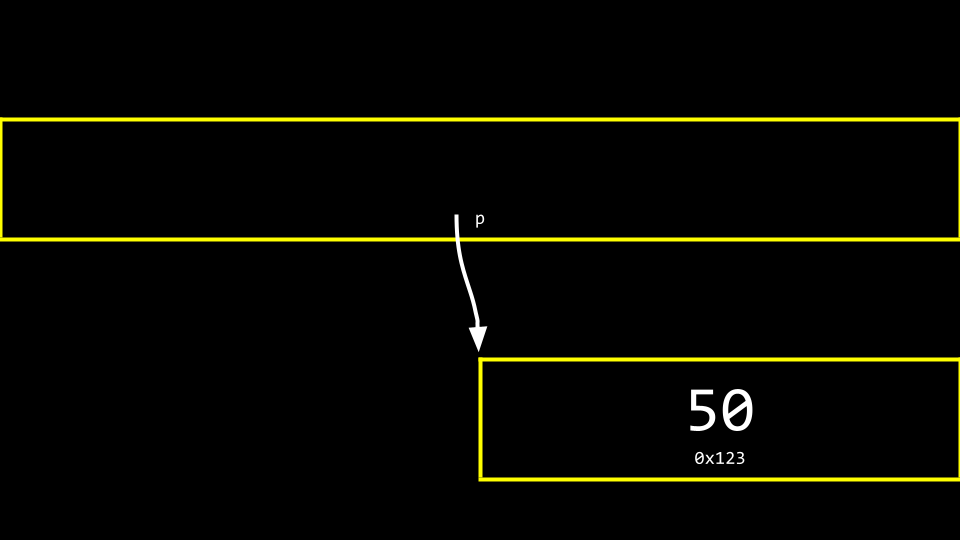

• You can more accurately visualize a pointer as one address that points to another:



Strings

• Now that we have a mental model for pointers, we can peel back a level of simplification that was offered earlier in this course.
• Modify your code as follows:

// Prints a string

#include <cs50.h>
#include <stdio.h>

int main(void)
{
    string s = "HI!";
    printf("%s\n", s);
}

Notice that a string s is printed. You can download this code here.

• Recall that a string is simply an array of characters. For example, string s = "HI!" can be represented as follows:

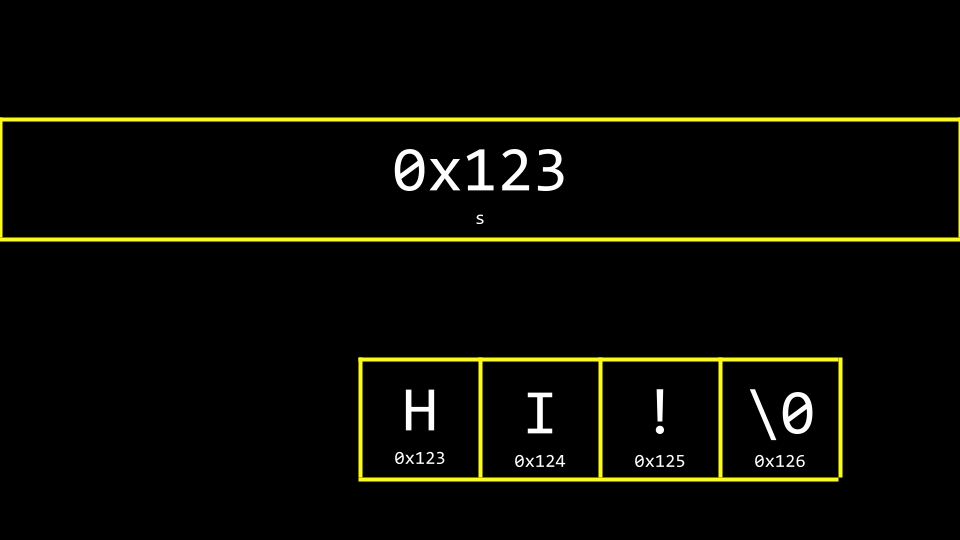

• However, what is s really? Where is the s stored in memory? As you can imagine, s needs to be stored somewhere. You can visualize the relationship of s to the string as follows:



  Notice how a pointer called s tells the compiler where the first byte of the string exists in memory.

• Modify your code as follows:

// Prints a string's address as well the addresses of its chars

#include <cs50.h>
#include <stdio.h>

int main(void)
{
    string s = "HI!";
    printf("%p\n", s);
    printf("%p\n", &s[0]);
    printf("%p\n", &s[1]);
    printf("%p\n", &s[2]);
    printf("%p\n", &s[3]);
}

Notice the above prints the memory locations of each character in the string s. The & symbol is used to show the address of each element of the string. When running this code, notice that elements 0, 1, 2, and 3 are next to one another in memory. You can download this code here.

• Likewise, you can modify your code as follows:

// Declares a string with CS50 Library

#include <cs50.h>
#include <stdio.h>

int main(void)
{
    string s = "HI!";
    printf("%s\n", s);
}

Notice that this code creates a string using the cs50.h library. You can download this code here.

• Taking off the training wheels, you can modify your code again:

// Declares a string without CS50 Library

#include <stdio.h>

int main(void)
{
    char *s = "HI!";
    printf("%s\n", s);
}

Notice that cs50.h is removed. A string is implemented as a char *. This code will present the string that starts at the location of s. This code effectively removes the training wheels of the string data type offered by cs50.h. This is raw C code, without the scaffolding of the cs50 library. You can download this code here.

• You can imagine how a string, as a data type, is created.
• Last week, we learned how to create your own data type as a struct.
• The cs50 library includes a type definition as follows: typedef char *string
• This type definition, when using the cs50 library, is a simplified representation that allows one to use a custom data type called string.

Pointer Arithmetic

• Pointer arithmetic is the ability to do math on locations of memory.
• You can modify your code to print out each memory location in the string as follows:

// Prints a string's chars

#include <stdio.h>

int main(void)
{
    char *s = "HI!";
    printf("%c\n", s[0]);
    printf("%c\n", s[1]);
    printf("%c\n", s[2]);
}

Notice that we are printing each character at the location of s. You can download this code here.

• Further, you can modify your code as follows:

// Prints a string's chars via pointer arithmetic

#include <stdio.h>

int main(void)
{
    char *s = "HI!";
    printf("%c\n", *s);
    printf("%c\n", *(s + 1));
    printf("%c\n", *(s + 2));
}

Notice that the first character at the location of s is printed. Then, the character at the location s + 1 is printed, and so on. You can download this code here.

• Likewise, consider the following:

// Prints substrings via pointer arithmetic

#include <stdio.h>

int main(void)
{
    char *s = "HI!";
    printf("%s\n", s);
    printf("%s\n", s + 1);
    printf("%s\n", s + 2);
}

Notice that this code prints the values stored at various memory locations starting with s. You can download this code here.

String Comparison

• A string of characters is simply an array of characters identified by the location of its first byte.
• Earlier in the course, we considered the comparison of integers. We could represent this in code by typing code compare.c into the terminal window as follows:

// Compares two integers

#include <cs50.h>
#include <stdio.h>

int main(void)
{
    // Get two integers
    int i = get_int("i: ");
    int j = get_int("j: ");

    // Compare integers
    if (i == j)
    {
        printf("Same\n");
    }
    else
    {
        printf("Different\n");
    }
}

Notice that this code takes two integers from the user and compares them. You can download this code here.

• In the case of strings, however, one cannot compare two strings using the == operator.
• Utilizing the == operator in an attempt to compare strings will attempt to compare the memory locations of the strings instead of the characters therein. Accordingly, we recommended the use of strcmp.
• To illustrate this, modify your code as follows:

// Compares two strings' addresses

#include <cs50.h>
#include <stdio.h>

int main(void)
{
    // Get two strings
    char *s = get_string("s: ");
    char *t = get_string("t: ");

    // Compare strings' addresses
    if (s == t)
    {
        printf("Same\n");
    }
    else
    {
        printf("Different\n");
    }
}

Noticing that typing in HI! for both strings still results in the output of Different. You can download this code here.

• Why are these strings seemingly different? You can use the following to visualize why:



• Therefore, the code for compare.c above is actually attempting to see if the memory addresses are different, not the strings themselves.

• Using strcmp, we can correct our code:

// Compares two strings using strcmp

#include <cs50.h>
#include <stdio.h>
#include <string.h>

int main(void)
{
    // Get two strings
    char *s = get_string("s: ");
    char *t = get_string("t: ");

    // Compare strings
    if (strcmp(s, t) == 0)
    {
        printf("Same\n");
    }
    else
    {
        printf("Different\n");
    }
}

Notice that strcmp can return 0 if the strings are the same. You can download this code here.

• To further illustrate how these two strings are living in two locations, modify your code as follows:

// Prints two strings

#include <cs50.h>
#include <stdio.h>

int main(void)
{
    // Get two strings
    char *s = get_string("s: ");
    char *t = get_string("t: ");

    // Print strings
    printf("%s\n", s);
    printf("%s\n", t);
}

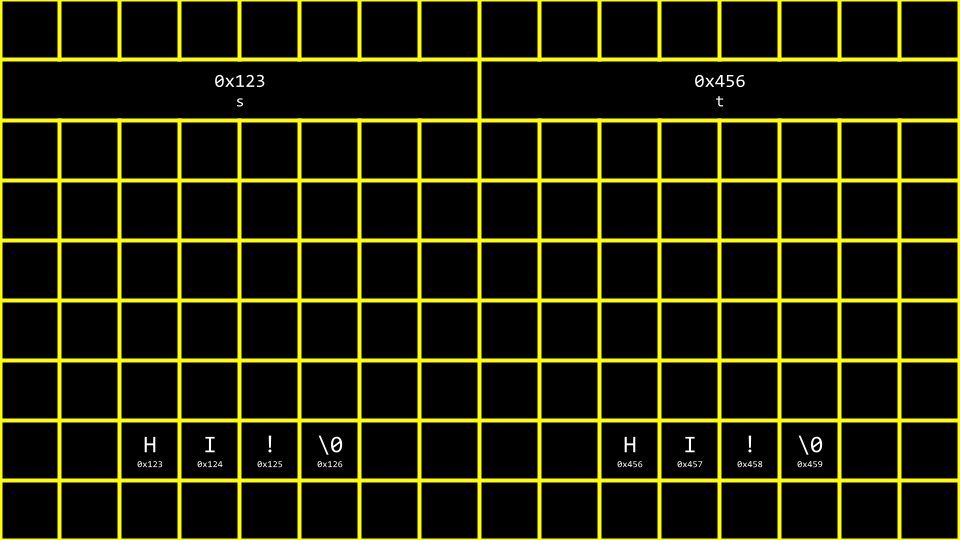

Notice how we now have two separate strings stored, likely at two separate locations. You can download this code here.

• You can see the locations of these two stored strings with a small modification:

// Prints two strings' addresses

#include <cs50.h>
#include <stdio.h>

int main(void)
{
    // Get two strings
    char *s = get_string("s: ");
    char *t = get_string("t: ");

    // Print strings' addresses
    printf("%p\n", s);
    printf("%p\n", t);
}

Notice that the %s has been changed to %p in the print statement. You can download this code here.

Copying and malloc

• A common need in programming is to copy one string to another.
• In your terminal window, type code copy.c and write code as follows:

// Capitalizes a string

#include <cs50.h>
#include <ctype.h>
#include <stdio.h>
#include <string.h>

int main(void)
{
    // Get a string
    string s = get_string("s: ");

    // Copy string's address
    string t = s;

    // Capitalize first letter in string
    t[0] = toupper(t[0]);

    // Print string twice
    printf("s: %s\n", s);
    printf("t: %s\n", t);
}

Notice that string t = s copies the address of s to t. This does not accomplish what we are desiring. The string is not copied – only the address is. Further, notice the inclusion of ctype.h. You can download this code here.

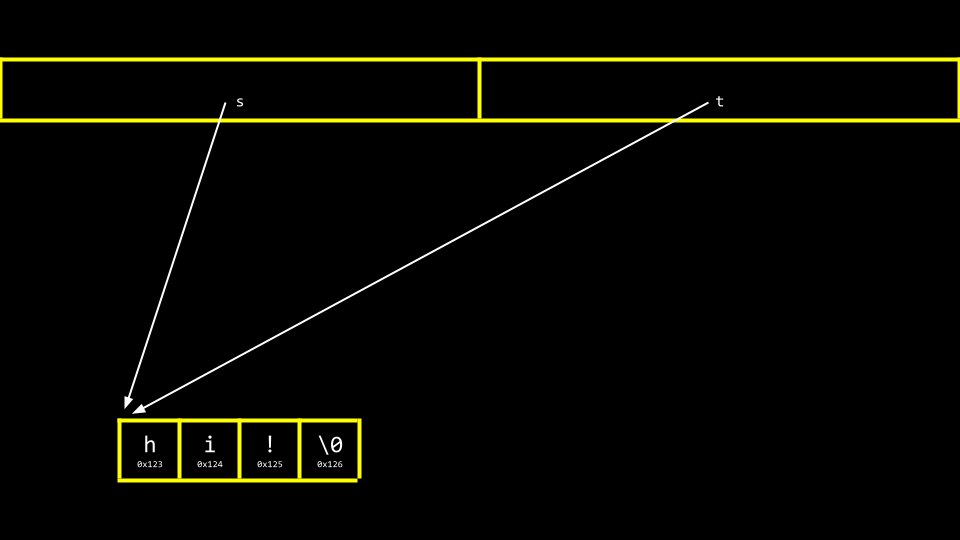

• You can visualize the above code as follows:



  Notice that s and t are still pointing at the same blocks of memory. This is not an authentic copy of a string. Instead, these are two pointers pointing at the same string.

• Before we address this challenge, it’s important to ensure that we don’t experience a segmentation fault through our code, where we attempt to copy string s to string t, where string t does not exist. We can employ the strlen function as follows to assist with that:

// Capitalizes a string, checking length first

#include <cs50.h>
#include <ctype.h>
#include <stdio.h>
#include <string.h>

int main(void)
{
    // Get a string
    string s = get_string("s: ");

    // Copy string's address
    string t = s;

    // Capitalize first letter in string
    if (strlen(t) > 0)
    {
        t[0] = toupper(t[0]);
    }

    // Print string twice
    printf("s: %s\n", s);
    printf("t: %s\n", t);
}

Notice that strlen is used to make sure string t has content. If it does not, nothing will be copied. You can download this code here.

• To be able to make an authentic copy of the string, we will need to introduce two new building blocks. First, malloc allows you, the programmer, to allocate a block of a specific size of memory. Second, free allows you to tell the compiler to free up that block of memory you previously allocated.

• We can modify our code to create an authentic copy of our string as follows:

// Capitalizes a copy of a string

#include <cs50.h>
#include <ctype.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

int main(void)
{
    // Get a string
    char *s = get_string("s: ");

    // Allocate memory for another string
    char *t = malloc(strlen(s) + 1);

    // Copy string into memory, including '\0'
    for (int i = 0; i <= strlen(s); i++)
    {
        t[i] = s[i];
    }

    // Capitalize copy
    t[0] = toupper(t[0]);

    // Print strings
    printf("s: %s\n", s);
    printf("t: %s\n", t);
}

Notice that malloc(strlen(s) + 1) creates a block of memory that is the length of the string s plus one. This allows for the inclusion of the null \0 character in our final copied string. Then, the for loop walks through the string s and assigns each value to that same location on the string t. You can download this code here.

• It turns out that our code is inefficient. Modify your code as follows:

// Capitalizes a copy of a string, defining n in loop too

#include <cs50.h>
#include <ctype.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

int main(void)
{
    // Get a string
    char *s = get_string("s: ");

    // Allocate memory for another string
    char *t = malloc(strlen(s) + 1);

    // Copy string into memory, including '\0'
    for (int i = 0, n = strlen(s); i <= n; i++)
    {
        t[i] = s[i];
    }

    // Capitalize copy
    t[0] = toupper(t[0]);

    // Print strings
    printf("s: %s\n", s);
    printf("t: %s\n", t);
}

Notice that n = strlen(s) is defined now in the left-hand side of the for loop. It’s best not to call unneeded functions in the middle condition of the for loop, as it will run over and over again. When moving n = strlen(s) to the left-hand side, the function strlen only runs once. You can download this code here.

• The C Language has a built-in function to copy strings called strcpy. It can be implemented as follows:

// Capitalizes a copy of a string using strcpy

#include <cs50.h>
#include <ctype.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

int main(void)
{
    // Get a string
    char *s = get_string("s: ");

    // Allocate memory for another string
    char *t = malloc(strlen(s) + 1);

    // Copy string into memory
    strcpy(t, s);

    // Capitalize copy
    t[0] = toupper(t[0]);

    // Print strings
    printf("s: %s\n", s);
    printf("t: %s\n", t);
}

Notice that strcpy does the same work that our for loop previously did. You can download this code here.

• Both get_string and malloc return NULL, a special value in memory, in the event that something goes wrong. You can write code that can check for this NULL condition as follows:

// Capitalizes a copy of a string without memory errors

#include <cs50.h>
#include <ctype.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

int main(void)
{
    // Get a string
    char *s = get_string("s: ");
    if (s == NULL)
    {
        return 1;
    }

    // Allocate memory for another string
    char *t = malloc(strlen(s) + 1);
    if (t == NULL)
    {
        return 1;
    }

    // Copy string into memory
    strcpy(t, s);

    // Capitalize copy
    if (strlen(t) > 0)
    {
        t[0] = toupper(t[0]);
    }

    // Print strings
    printf("s: %s\n", s);
    printf("t: %s\n", t);

    // Free memory
    free(t);
    return 0;
}

Notice that if the string obtained is of length 0 or malloc fails, NULL is returned. Further, notice that free lets the computer know you are done with this block of memory you created via malloc. You can download this code here.

Valgrind

• Valgrind is a tool that can check to see if there are memory-related issues with your programs wherein you utilized malloc. Specifically, it checks to see if you free all the memory you allocated.
• Consider the following code for memory.c:

// Demonstrates memory errors via valgrind

#include <stdio.h>
#include <stdlib.h>

int main(void)
{
    int *x = malloc(3 * sizeof(int));
    x[1] = 72;
    x[2] = 73;
    x[3] = 33;
}

Notice that running this program does not cause any errors. While malloc is used to allocate enough memory for an array, the code fails to free that allocated memory. You can download this code here.

• If you type make memory followed by valgrind ./memory, you will get a report from valgrind that will report where memory has been lost as a result of your program. One error that valgrind reveals is that we attempted to assign the value of 33 at x of 3, where we only allocated an array of size 3 (x[0], x[1], and x[2]). Another error is that we never freed x.
• You can modify your code to free the memory of x as follows:

// Demonstrates memory errors via valgrind

#include <stdio.h>
#include <stdlib.h>

int main(void)
{
    int *x = malloc(3 * sizeof(int));
    x[0] = 72;
    x[1] = 73;
    x[2] = 33;
    free(x);
}

Notice that running valgrind again now results in no memory leaks or errors

Garbage Values

• When you ask the compiler for a block of memory, there is no guarantee that this memory will be empty.
• It’s very possible that the memory you allocated was previously utilized by the computer. Accordingly, you may see junk or garbage values. This is a result of you getting a block of memory but not initializing it. For example, consider the following code for garbage.c:

#include <stdio.h>
#include <stdlib.h>

int main(void)
{
    int scores[1024];
    for (int i = 0; i < 1024; i++)
    {
        printf("%i\n", scores[i]);
    }
}

Notice that running this code will allocate 1024 locations in memory for your array, but the for loop will likely show that not all values therein are 0. It’s always best practice to be aware of the potential for garbage values when you do not initialize blocks of memory to some other value like zero or otherwise. You can download this code here.

Pointer Fun with Binky

• We watched a video from Stanford University that helped us visualize and understand pointers.

Swapping

• In the real world, a common need in programming is to swap two values. Naturally, it’s hard to swap two variables without a temporary holding space. In practice, you can type code swap.c and write code as follows to see this in action:

// Fails to swap two integers

#include <stdio.h>

void swap(int a, int b);

int main(void)
{
    int x = 1;
    int y = 2;

    printf("x is %i, y is %i\n", x, y);
    swap(x, y);
    printf("x is %i, y is %i\n", x, y);
}

void swap(int a, int b)
{
    int tmp = a;
    a = b;
    b = tmp;
}

Notice that while this code runs, it does not work. The values, even after being sent to the swap function, do not swap. Why? You can download this code here.

• When you pass values to a function, you are only providing copies. The scope of x and y is limited to the main function as the code is presently written. That is, the values of x and y created in the curly {} braces of the main function only have the scope of the main function. In our code above, x and y are being passed by value.

• Consider the following image:



  Notice that global variables, which we have not used in this course, live in one place in memory. Various functions are stored in the stack in another area of memory.

• Now, consider the following image:



  Notice that main and swap have two separate frames or areas of memory. Therefore, we cannot simply pass the values from one function to another to change them.

• Modify your code as follows:

// Swaps two integers using pointers

#include <stdio.h>

void swap(int *a, int *b);

int main(void)
{
    int x = 1;
    int y = 2;

    printf("x is %i, y is %i\n", x, y);
    swap(&x, &y);
    printf("x is %i, y is %i\n", x, y);
}

void swap(int *a, int *b)
{
    int tmp = *a;
    *a = *b;
    *b = tmp;
}

Notice that variables are not passed by value but by reference. That is, the addresses of a and b are provided to the function. Therefore, the swap function can know where to make changes to the actual a and b from the main function. You can download this code here.

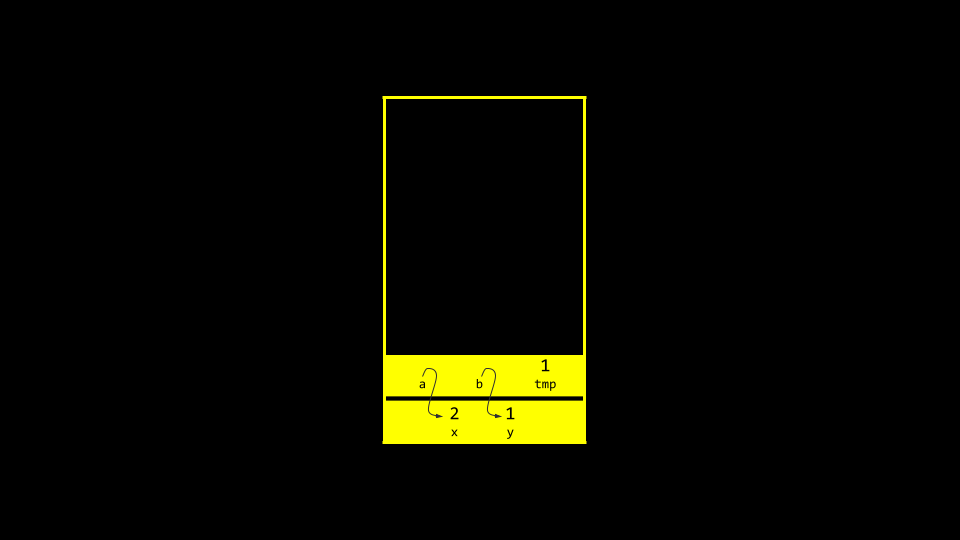

• You can visualize this as follows:



Overflow

• A heap overflow is when you overflow the heap, touching areas of memory you are not supposed to.
• A stack overflow is when too many functions are called, overflowing the amount of memory available.
• Both of these are considered buffer overflows.

scanf

• In CS50, we have created functions like get_int to simplify the act of getting input from the user.
• scanf is a built-in function that can get user input.
• We can reimplement get_int rather easily using scanf as follows:

// Gets an int from user using scanf

#include <stdio.h>

int main(void)
{
    int n;
    printf("n: ");
    scanf("%i", &n);
    printf("n: %i\n", n);
}

Notice that the value of n is stored at the location of n in the line scanf("%i", &n). You can download this code here.

• However, attempting to reimplement get_string is not easy. Consider the following:

// Dangerously gets a string from user using scanf with array

#include <stdio.h>

int main(void)
{
    char s[4];
    printf("s: ");
    scanf("%s", s);
    printf("s: %s\n", s);
}

Notice that no & is required because array names in C act as pointers. Still, this program will not function correctly every time it is run. Nowhere in this program do we allocate enough memory for our intended string. Indeed, we don’t know how long of a string may be inputted by the user! Further, we don’t know what garbage values may exist at the memory location. You can download this code here.

• Further, your code could be modified as follows. However, we have to pre-allocate a certain amount of memory for a string:

// Using malloc

#include <stdio.h>
#include <stdlib.h>

int main(void)
{
    char *s = malloc(4);
    if (s == NULL)
    {
        return 1;
    }
    printf("s: ");
    scanf("%s", s);
    printf("s: %s\n", s);
    free(s);
    return 0;
}

Notice that if a string that is four bytes is provided you might get an error.

• Simplifying our code as follows, we can further understand this essential problem of pre-allocation:

#include <stdio.h>

int main(void)
{
    char s[4];
    printf("s: ");
    scanf("%s", s);
    printf("s: %s\n", s);
}

Notice that if we pre-allocate an array of size 4, we can type cat and the program functions. However, a string larger than this could create an error.

• Sometimes, the compiler or the system running it may allocate more memory than we indicate. Fundamentally, though, the above code is unsafe. We cannot trust that the user will input a string that fits into our pre-allocated memory.

File I/O

• You can read from and manipulate files. While this topic will be discussed further in a future week, consider the following code for phonebook.c:

// Saves names and numbers to a CSV file

#include <cs50.h>
#include <stdio.h>
#include <string.h>

int main(void)
{
    // Open CSV file
    FILE *file = fopen("phonebook.csv", "a");

    // Get name and number
    char *name = get_string("Name: ");
    char *number = get_string("Number: ");

    // Print to file
    fprintf(file, "%s,%s\n", name, number);

    // Close file
    fclose(file);
}

Notice that this code uses pointers to access the file. You can download this code here.

• You can create a file called phonebook.csv in advance of running the above code or download phonebook.csv. After running the above program and inputting a name and phone number, you will notice that this data persists in your CSV file.
• If we want to ensure that phonebook.csv exists prior to running the program, we can modify our code as follows:

// Saves names and numbers to a CSV file, checking for NULL

#include <cs50.h>
#include <stdio.h>
#include <string.h>

int main(void)
{
    // Open CSV file
    FILE *file = fopen("phonebook.csv", "a");
    if (file == NULL)
    {
        return 1;
    }

    // Get name and number
    char *name = get_string("Name: ");
    char *number = get_string("Number: ");

    // Print to file
    fprintf(file, "%s,%s\n", name, number);

    // Close file
    fclose(file);
}

Notice that this program protects against a NULL pointer by invoking return 1. You can download this code here.

• We can implement our own copy program by typing code cp.c and writing code as follows:

// Copies a file

#include <stdio.h>

typedef unsigned char BYTE;

int main(int argc, char *argv[])
{
    FILE *src = fopen(argv[1], "rb");
    FILE *dst = fopen(argv[2], "wb");

    BYTE b;

    while (fread(&b, sizeof(b), 1, src) != 0)
    {
        fwrite(&b, sizeof(b), 1, dst);
    }

    fclose(dst);
    fclose(src);
}

Notice that this file creates our own data type called a BYTE , which is equivalent to the size of a uint8_t. Then, the file reads a BYTE and writes it to a file. You can download this code here.

• BMPs are also assortments of data that we can examine and manipulate. This week, you will be doing just that in your problem sets!

Summing Up

In this lesson, you learned about pointers that provide you with the ability to access and manipulate data at specific memory locations. Specifically, we delved into…

• Pixel art
• Hexadecimal
• Memory
• Pointers
• Strings
• Pointer Arithmetic
• String Comparison
• Copying
• malloc and Valgrind
• Garbage values
• Swapping
• Overflow
• scanf
• File I/O

See you next time!
